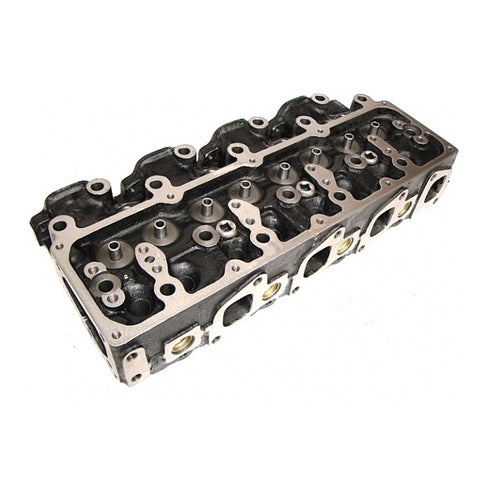

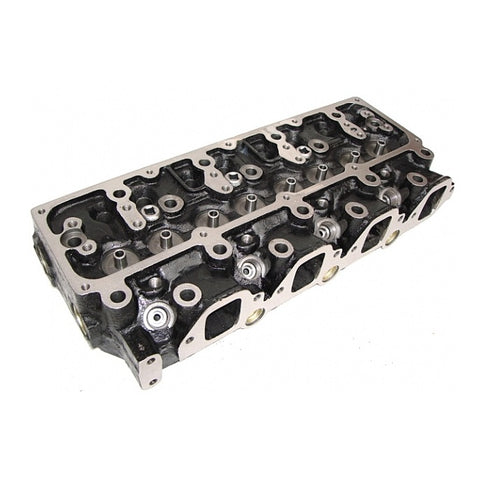

Nissan 2.7 TD27 Cylinder Head - 24mm Injector - Bare
Nissan 2.7 TD27 Cylinder Head - 24mm Injector - Bare
Nissan 2.7 TD27 Cylinder Head - 24mm Injector - Bare
Nissan 2.7 TD27 Cylinder Head - 24mm Injector - Bare
Zoom
New
In stock
Out stock

Nissan 2.7 TD27 Cylinder Head - 24mm Injector - Bare

SKU: CyHdBr-TD27-24m-SEP

AVAILABILITY: In stock (1 item)

PRODUCT TYPE: Cylinder Heads

BRAND: Silva

Cylinder Heads, Cylinder heads, Nissan, Nissan, Nissan, Silva
R 4,600.00

Tax included.
Save For Later Added To Wishlist
Add To Compare Added To Compare
Warranty Info
DELIVERY & RETURN
MESSAGE
PRODUCT INFORMATION
Technical Data & Specifications
Makes & Models
PRODUCT INFORMATION

Bare Cylinder Head
Valve seats, guides and/or pre-combustion chambers installed. Where applicable rocker pedestals, camshaft caps/cradle installed and line bored (refer to image) - ready for assembly, no assembly parts included.

Notes - Variants
TD27 engine was produced in 2 variations. This variant is for a 24mm injector thread.

  • 24mm Injector Thread Diameter - This listing
  • 20mm Injector Thread Diameter

Part Numbers

  • OEM Number/s: 11039-7F403; 11039-7F409; 11039-43G03;
  • Aftermarket Cross Reference/s: ###
  • Casting Number/s: ###
  • Other Number/s: ###

To ensure accuracy when purchasing, part number/s should be used in conjunction with specifications, notes and/or pictures. All trademarks are the property of their respective owners.

Technical Data & Specifications

Engine Technical Data
Code - TD27
Displacement Capacity - 2.7L – 2663cc
Aspiration - Natural / Turbo
Fuel Type - Diesel
Injection Type - Indirect – Pre-Combustion Chamber
Injector Size - 24mm
Timing Drive - Gear Driven
Valve Train Operation - OHV (Overhead Valve) – Pushrod Type
Valves - 8 – 2 Per Cylinder
Cylinders - 4 Inline
Bore Ø - 96.0mm
Stroke - 92.0mm

Makes & Models

Vehicle Models
Nissan

Cabstar
Hardbody
Pathfinder
Terrano
