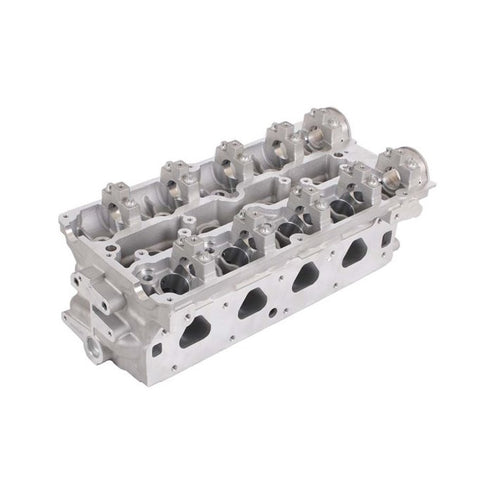

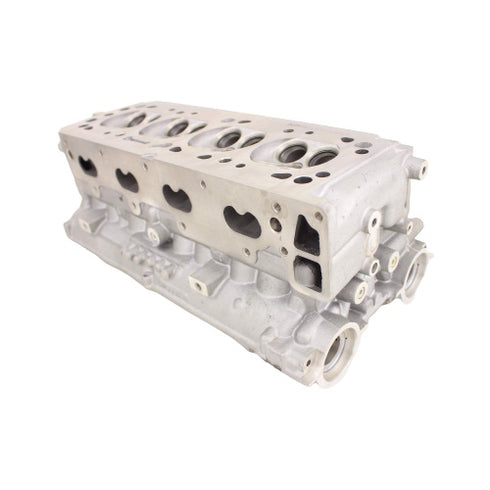

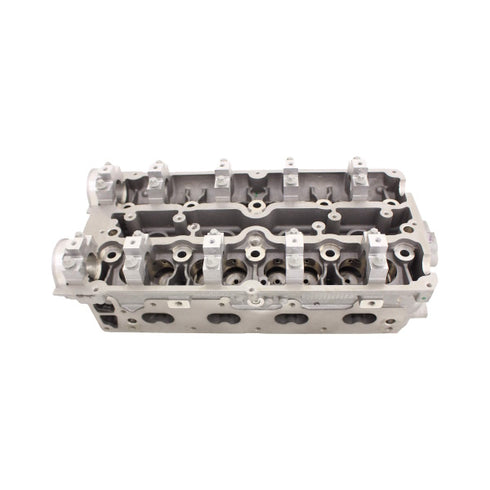

Opel 1.4 Z14XE 1.6 Z16XE Cylinder Head - Bare

SKU: CyHdBr-Z14XE/Z16XE-SEP

AVAILABILITY: In stock (1 item)

PRODUCT TYPE: Cylinder Heads

BRAND: Silva

Cylinder Heads, Cylinder heads, Opel, Silva
R 6,750.00

Tax included.
Save For Later Added To Wishlist
Add To Compare Added To Compare
Warranty Info
DELIVERY & RETURN
MESSAGE
PRODUCT INFORMATION
Technical Data & Specifications
Makes & Models
PRODUCT INFORMATION

Bare Cylinder Head
Valve seats, guides and/or pre-combustion chambers installed. Where applicable rocker pedestals, camshaft caps/cradle installed and line bored (refer to image) - ready for assembly, no assembly parts included.

Part Numbers

  • OEM Number: 13106674, 90400210
  • Aftermarket Cross Reference/s: ###
  • Casting Number/s: ###
  • Other Number/s: ###

To ensure accuracy when purchasing, part number/s should be used in conjunction with specifications, notes and/or pictures. All trademarks are the property of their respective owners.

Technical Data & Specifications

Engine Technical Data
Code – Z14XE / Z16XE
Displacement Capacity – 1.4L ; 1389cc / 1.6L ; 1598cc
Aspiration – Natural
Fuel Type – Petrol
Injection Type – Indirect Injection (Port Injection)
Timing Drive – Timing Belt
Valve Train Operation – Double OHC - Hydraulic Lifters
Valves – 16 – 4 Per Cylinder
Cylinders – 4 Inline
Bore Ø – 1.4l - 77.6mm / 1.6l - 79.0mm
Stroke – 1.4l - 73.4mm / 1.6l - 81.5mm

Makes & Models

Vehicle Models
Opel

  • Astra
  • Meriva
  • Zafira
