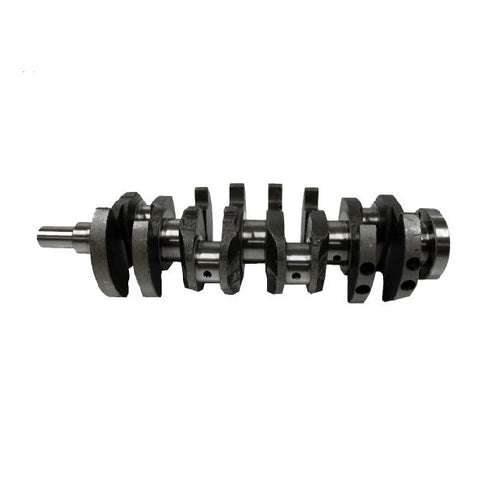

Toyota 1.3 2E Crankshaft

SKU: CrkSft-2E-SEP

AVAILABILITY: Out of Stock

PRODUCT TYPE: Crankshafts

BRAND: Silva

All Crankshafts, Crankshaft, Silva, Toyota, Toyota
R 1,500.00

Tax included.
Save For Later Added To Wishlist
Add To Compare Added To Compare
Warranty Info
DELIVERY & RETURN
MESSAGE
PRODUCT INFORMATION
Technical Data & Specifications
Makes & Models
PRODUCT INFORMATION

Crankshaft
Standard - does not include, where applicable, any actuators, bearings, bolts, gears, keys, locator pins, oil drive (attachable), pulleys, pilot bearing, seals, sensor plates or sprockets.

Part Numbers

  • OEM Number/s : 13401-11050, 13401-11051, 13411-11020
  • Cross Reference: ### ###
  • Other Codes: ###

To ensure accuracy when purchasing, part number/s should be used in conjunction with specifications, notes and/or pictures. All trademarks are the property of their respective owners.

Technical Data & Specifications

Specifications
Main journal ⌀: 47mm
Conrod journal ⌀: 40mm
Rear seal ⌀: 75mm
front seal ⌀: 35mm
Stroke: 77.4mm
Flywheel holes: 6
Overall length: 430mm

Engine Technical Data
Code – 2E
Displacement Capacity – 1.3L – 1295cc
Aspiration – Natural
Fuel Type – Petrol
Injection Type – Carbureted
Timing Drive – Belt
Valve Train Operation – Single Overhead Camshaft (SOHC); Solid Lifter
Valves – 12 – 3 Per Cylinder
Cylinders – 4 Inline
Bore Ø – 73mm
Stroke – 77.4mm

Makes & Models

Vehicle Models
Toyota
Conquest
Corolla
Tazz
