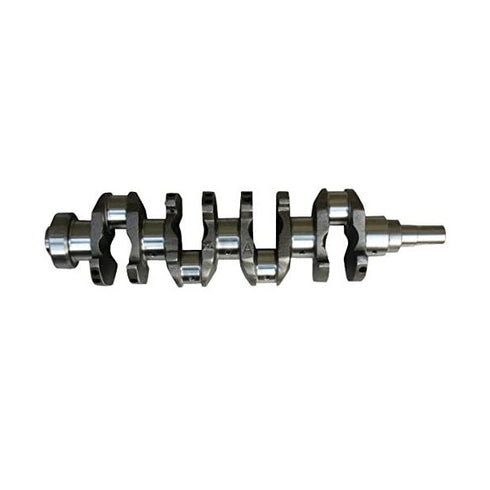

Toyota 2.5 2KD Crankshaft
Zoom
New
In stock
Out stock

Toyota 2.5 2KD Crankshaft

SKU: CrkSft-2KD-SEP

AVAILABILITY: Out of Stock

PRODUCT TYPE: Crankshafts

BRAND: Silva

All Crankshafts, Crankshaft, Silva, Toyota, Toyota
R 2,250.00

Tax included.
Save For Later Added To Wishlist
Add To Compare Added To Compare
Warranty Info
DELIVERY & RETURN
MESSAGE
PRODUCT INFORMATION
Technical Data & Specifications
Makes & Models
PRODUCT INFORMATION

Crankshaft
Standard - does not include, where applicable, any actuators, bearings, bolts, gears, keys, locator pins, oil drive (attachable), pulleys, pilot bearing, seals, sensor plates or sprockets.

Part Numbers

  • OEM Number: 13401-30020
  • Aftermarket Cross Reference/s: ###
  • Cross Reference/s: ###
  • Other: ###

To ensure accuracy when purchasing, part number/s should be used in conjunction with specifications, notes and/or pictures. All trademarks are the property of their respective owners.

Technical Data & Specifications

Specifications
Main journal ⌀: 70mm
Con rod journal ⌀: 59mm
Rear seal ⌀: 95mm
Front seal ⌀: ###mm
Stroke: 93.8mm
Flywheel holes: 8
Overall length: 608mm

Engine Technical Data
Code - 2KD
Displacement Capacity - 2.5L - 2494cc
Aspiration - Turbo (Variable Nozzle Turbo)
Fuel Type - Diesel
Injection Type - Direct Injection - Common Rail
Timing Drive - Belt
Valve Train Operation - Double OHC; 16 Rockers
Valves - 16 - 4 Per Cylinder
Cylinders - 4 Inline
Bore Ø - 92.0mm
Stroke - 93.8mm

Makes & Models

Vehicle Models
Fortuner
Hiace
Hilux
Innova
Quantum
